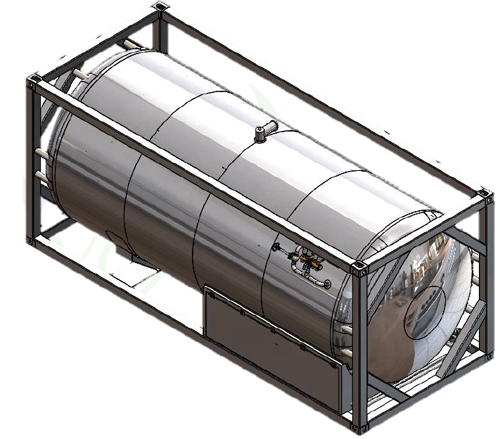

LH2 Storage Tank

LH2 ISO tank is designed specifically for the storage and transport of liquid hydrogen (LH2), an extremely low-temperature. Liquid hydrogen is stored at a temperature of around -253°C (-423°F), making these tanks highly advanced in terms of insulation and design to safely contain and transport the hydrogen while preventing evaporation or pressure build-up

LH2 Storage Tank Equipment

Cryogenic Insulation
Double-Walled Construction
Pressure Management
Standardized Design

Design Code	ASME SEC VIII Div 1: Appendix 44, IMDG, RID, ADR
Capacity	20 Ft
Design Pressure	10 Bar
Design Temperature	-253/+50^oC
Fluid Service	LH2
Insulation	MLI + Vacuum
% Of Filling	95
